ID # 26623085

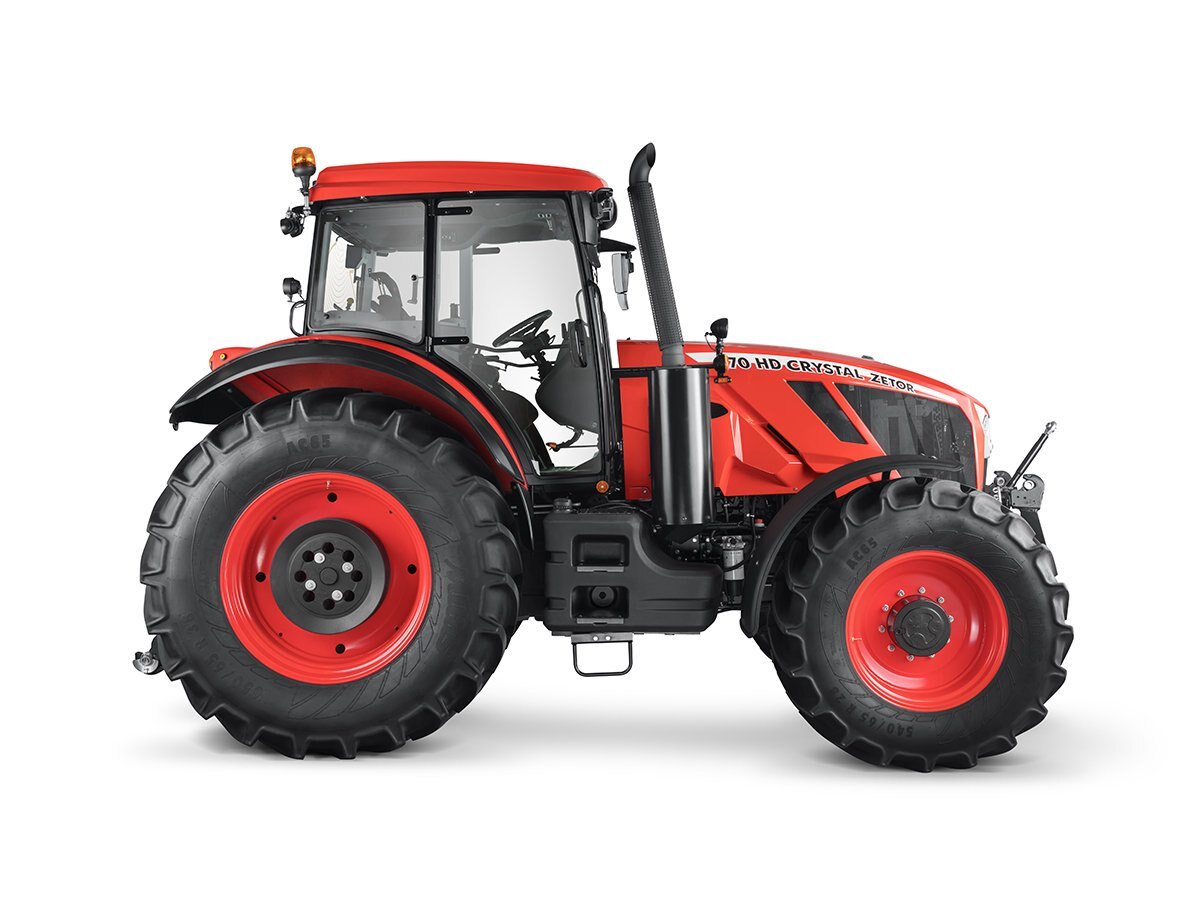

Zetor Crystal

Call for Price
Overview

Crystal Tractors

The Crystal – a reliable partner for hard work. Its powerful engine will not let you down. It is easy to operate it. You will feel comfortable and will have a good view from the spacious cab.

Performance

The six-cylinder engine with a maximum output of up to 171 horsepower provides the tractor with enough power to easily handle heavy-duty deployment.

Endurance

In the wind and rain. In winter and summer. In the daytime and at night. Zetor Crystal does not wait for ideal conditions. It supplies the maximum power on every occasion.

Total Cost of Ownership

Every tractor sometimes needs to refuel, but Zetor will surprise you with its low consumption. The spare parts are reasonably priced, and you can get quick and high-quality service all over the world.

Specifications
Model
Crystal
Year
2022
Sale Type
New
Manufacturer
Zetor
models



MODEL UNITS CRYSTAL HD 170
ENGINE
Type - DEUTZ TCD 6.1 L6 (STAGE V)
Max. power (ECE R120) kW / HP 125.7 / 170.9
Rated speed rpm 1,800
Rated power (ECE R120) kW / HP 120.3 / 163.6
Rated speed rpm 2,100
No. of cylinders / valves - 6 / 24
Displacement cm3 6,057
Max. torque Nm 739.0
Torque rise % 36
TRANSMISSION
Type -

ECO 40 transmission

Number of gears - 30/30
Reverser - Electrohydraulic (PowerShuttle)
Multiplier - 3-stage PowerShift
Clutch button - Clutch button located on the shift lever (PowerClutch)
Max. speed km/h 40 ECO
PTO
Type - Multi-plate PTO clutch with feedback controlled starting
Rear PTO revolutions rpm Independent (540/540E/1,000/1,000E)
HYDRAULICS
Pump capacity l/min 85 (gear)
External hydraulics circuits control - Electrohydraulically controlled sections (flow & timing)
Rear hydraulic remotes (Quickcouplers) - 8+1
THREE - POINT HITCH
Type - Bosch electro-hydraulics with HitchTronic, 2 auxiliary cylinders
Rear Three - Point Hitch - Category III
Max. lift capacity kN 85
Lifting capacity in full range kN 78
CAB
Suspension - Suspended cab
Driver's seat - Comfort seat pneumatic suspension, heating, backrest and seat belt
Controls - Multifunctional panel with joystick
Cab equipment - Air - Conditioning and heating, Heated Mirrors and Rear Defroster, AM / FM Radio, Passenger Seat with seatbelt
UNDERCARRIAGE
Drive System - 4WD
Front driven axle - Suspended with independent suspension of half-axles
Operating brakes -

Rear brakes: Independent pneumatically controlled brakes
Front brakes: hydraulically controlled brakes

Fuel tank / Urea tank l 300 / 32
OTHER SPECIFICATION
Operating Weight* kg 5,760–6,500
Max. Technically Permissible Weight kg 10,000
Max. Length** / Width*** / Height mm 4,388 - 5,410 / 2,515 - 2,550 / 3,045 - 3,050
Wheelbase mm 2,850

Other optional equipment: Front PTO, front 3PH with front hydraulic remotes (2+1), Trailer brakes (pneumatic 2+1 hoses or hydraulic & pneumatic 2+0 hoses),
LED Lights, Beacons, Wheels.

OPTOptional

* Without front and rear ballast,  **  Max. length with 3PH and front ballast, *** Max. width with folded mirrors

ZETOR TRACTORS a.s. reverses the right to change the data and information published in this website without previous notification. ZETOR TRACTORS a.s. is not liable for issues arising from any potentially faulty information published in this website.



features

Suzuki 2022 Hayabusa Engine
Powerful, reliable, ecological

The six-cylinder engines with a maximum output of 171 horsepower allow the maximum-duty deployment of the tractor. All Crystal tractor engines are based on the tried-and-tested concept of four-stroke, six-cylinder compression-ignition engines equipped with 24 valves and Common Rail injection.

The robust engine block makes up a compact part of the tractor's bearing structure, which can withstand high loads from attached machines.

The high torque rise capability guarantees the engine elasticity, as well as a wide operation field within the shifted gear. All of this with the minimum need of gear shifting.

6,1 litre

The engine capacity of 6.1 litres guarantees excellent power and high efficiency

  • Well-tested technology from a traditional compression-ignition engine manufacturer
  • High quality guarantees long life
  • Low noise supports comfortable driving
  • Low fuel consumption leads to long-term savings
  • The engines comply with the newest Stage V emission regulations.
  • The Common Rail injection system guarantees low emissions, as well as low fuel consumption

The system for cleaning exhaust gases with SCR technology and an active DPF filter decreases the amount of emissions released by the tractor and at the same time results in fuel savings in comparison to engines of an older design. Therefore, you protect your and your children's health while saving on operating costs.

Suzuki 2022 Hayabusa Energy-saving ECO 40 TRANSMISSION

Energy-saving transmission with a long service life.

The gearbox is designed with an emphasis on simple operation, logical gear-shifting pattern and low losses in transmitting high power. The transmission has a long service life, confirmed by customers from all around the world.

The dual wet disk clutches are highly reliable. In the most often used work range of 4-12 kmph, there are 13 gears available. This offers unparalleled value among machines utilising mechanical transmissions.

  • Our own production and detailed inspection guarantee top quality
  • Well-tested and durable materials ensure long life
  • Keeping the engine at optimum speed provides effective power
  • The ECO 40 transmission at the maximum speed of 40 kmph works at an energy-saving 1750 RPM, which brings the user operating cost savings of up to 18% in comparison to the previous tractor model



Making the tractor operation easier

PowerClutch

Clutch button on the gear shift lever

PowerClutch

PowerShift

Three-stage torque multiplier with automatic

PowerShift

PowerShuttle function

Hydraulic reverser

PowerShuttle

Suzuki 2022 Hayabusa HYDRAULICS
Force and efficiency

The uniform load of the tractor and the maximum lifting force of 85 kN are provided by two auxiliary cylinders. The new four section auxiliary distributor is controlled electronically with the so-called FINGERTIP, which allows the machine operator to regulate the time and volume of the supplied oil. The distributor is also equipped with a reverse ¾ coupler for rotary hydro motor waste, allowing the use of various types of aggregates. The effective EHR HitchTronic tillage control system is fitted as standard.

  • Maximum lifting force 85 kN
  • Simplifies everyday work using the fine control of the Control Functions
  • The pumps have an output of 85 l/min, which is a sufficient value for most aggregates suitable for this type of tractor
  • The simple system guarantees trouble-free operation

Suzuki 2022 Hayabusa HitchTronic

The electro-hydraulic system is equipped with HitchTronic, an automatic regulation system of the rear three-point hitch. When using this system, it is not necessary to adjust various types of regulation and their sensitivity. The regulation system measures the soil resistance itself and regulates the three-point hitch adjustment to match the conditions.

5-7 %

HitchTronic increases labour productivity and reduces fuel consumption by approximately 5-7%.

cab

Perfect view

The new Zetor Crystal is comfortable to drive. The spring-loaded cabin is set 10 cm higher in comparison to the first generation, providing for a perfect view. The quiet operation of the engine will literally astonish you. TThe completely new roof based on ZETOR by Pininfarina design study offers even better view on the front loader thanks to its indented shape and new sunroof. In addition, it already meets the FOPS as a standard.

  • CRYSTAL is also equipped with a new controller for work lights and beacons control. It includes a number of advanced functions such as automatic activation of work lights according to the selected direction of travel or a memory function.
  • Simple and intuitive handling of the tractor without complicated settings
  • Reduced noise of the cab and a roof hatch
  • The new dashboard brings the combination of a TFT LCD display with an analogue one, allowing the operator to easily monitor up to 32 indicators of machine operation
  • A more comfortable seat with extended adjustment possibilities brings more comfort
  • The ergonomic multifunction panel introduces comfortable and intuitive controlling
  • The machine has a LED package with 4 roof lights and 2 spotlights, which can be expanded with another 4 LED roof lights as an option
  • Completely new air conditioning and heating system

Suzuki 2022 Hayabusa axle
Long life and quality

The front-suspended driven axle of Zetor Crystal tractors consists of two separate and independently suspended half-axles. It is also equipped with a 100% multi-plate and hydraulically operated differential lock. The front axle is characterized by an exceptional rigidity and high resistance against long-term stress. The patented trapezoidal suspension of the wheels adds to the comfortable ride.

  • You will enjoy highly comfortable driving under any circumstances
  • Excellent reaction from the front wheels
  • You will appreciate the patented suspension and its shock-absorbing action on both wheels on heavy ground
  • It may be purchased with a central lubrication system.

CRYSTAL HD is equipped with a 100% differential lock and headland automatic system. The headland automatic system decreases the number of actions in every instance of turning on a headland, thus simplifying the machine operation and ensuring better manoeuvrability. This system consists of a combination of the automatic control of the 4WD forward driving axle, differential locks and the rear output shaft.
